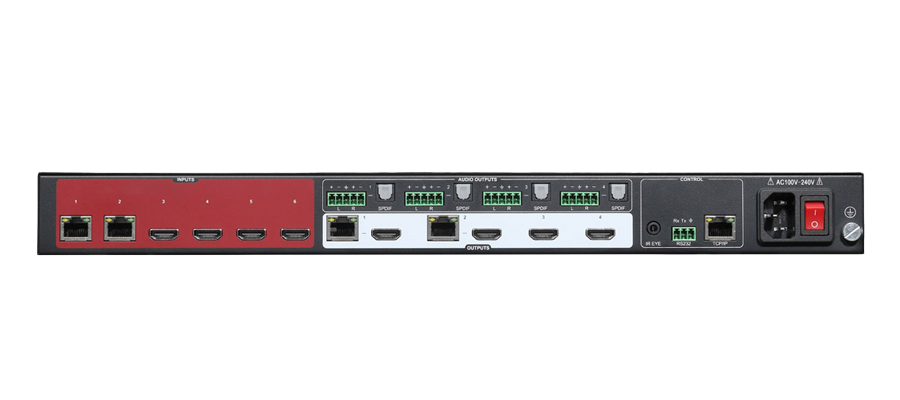

6X4+2 Matrix Switcher with HDBT

Model name: MSW-H614A-HDBT
6x4+2 18GBPS HDMI 2.0 MATRIX SWITCHER WITH HDBT

Looking for a cost-effective yet modern solution for your auditorium, lecture hall, worship hall, lobby, or corporate venue? Look no further than the MSW-H614A-HDBT!

This professional-grade 6x4+2 HDMI 2.0 and HDBaseT matrix switcher is designed to deliver optimal performance. Boasting a 2-input HDBaseT and four-input HDMI matrix with HDCP 2.3 and up to 4K60 4:4:4 video support, this matrix switcher is capable of transmitting 4K video up to 40 meters and 1080p video up to 70 meters over a single CAT6A cable.

In addition, the MSW-H614A-HDBT features four HDMI 2.0 with two mirrored simultaneous HDBaseT outputs which support 24V Power over Cable (PoC), enabling compatible TiGHT AV HDBaseT receivers to draw power from the matrix over the CAT6A cable. The matrix switcher is equipped with a 6x4 audio matrix that possesses de-embedding capabilities with individual volume, mute, and delay control per analog output channel.

The matrix switcher features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources and displays. The matrix switcher also offers multiple control options by front panel, IR, RS232 commands, WEB UI and TCP/IP commands.

Video

Video Input

(4) HDMI, (2) HDBT

Input Connector

(4) Type-A female HDMI, (2) RJ45

HDMI Input Resolution

Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision

Video Output

(4) HDMI, (2) mirrored HDBT

Output Connector

(4) Type-A female HDMI, (2) RJ45



HDMI Output Resolution

Up to 4K@60Hz 4:4:4, HDR10, 1080p 3D.

Supports 4K to 1080p auto-downscaling.

HDBaseT Output Resolution

Up to 4K@60Hz 4:4:4 (using compatible receivers)

HDMI Standard

HDMI 2.0b

HDCP Version

HDCP 2.x/1.x


Audio



HDMI Embedded Audio Format

LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.

Audio Output

(4) Stereo analog L+R audio, (4) Digital SPDIF audio

Output Connector

(4) 5-pin terminal blocks, (4) Toslink connectors

Analog L+R Audio Format

Supports PCM

Digital SPDIF Audio Format

Supports PCM, Dolby Digital, DTS, DTS-HD

Local Audio Sampling Rate

Supports 44.1KHz, 48KHz, 96KHz

Frequency Response

20Hz – 20KHz, ±3dB

Audio Output Impedance

70Ω



Max Input Level

L+R: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal.

SPDIF:±0.05dBFS.



THD+N

< 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level).



SNR

L+R: > 80dB, 20Hz - 20KHz bandwidth.

SPDIF: > 90dB, 20Hz - 20 kHz bandwidth.





Crosstalk Isolation

SPDIF: < -120 dB, 10KHz sine at 0dBFS level (or max level before clipping).

L+R: < -60 dB, 10KHz sine at 0dBFS level (or max level before

clipping).



L-R Level Deviation

L+R: < 0.3dB, 1KHz sine at 0dBFS level (or max level before

clipping).

Frequency Response Deviation

< ± 0.5dB 20Hz - 20KHz.

Output Load Capability

L+R: 1KΩ and higher (Supports 10x paralleled 10KΩ loads).


Control

Control port

(1) IR EYE, (1) RS232, (1) TCP/IP

Control Connector

(1) 3.5mm jacks, (1) 3-pin terminal blocks, (1) RJ45


General

Extension Transmission Mode

HDBaseT



Transmission Distance

1080p ≤ 230 feet (70 meters),

4K@60Hz ≤ 131 feet (40 meters)

Bandwidth

Up to 18Gbps

Operation Temperature

-5℃ ~ +55℃

Storage Temperature

-25℃ ~ +70℃

Relative Humidity

10% ~ 90%

Power Consumption

115W Max (Fully loaded and powering TX and RX)

External Power Supply

100V~240V AC, 50/60Hz

Dimension (W*H*D)

435mm x 43mm x 300mm

Net Weight

3.40kg

Shipping Dimension (W*H*D)

505mm x 140mm x 365mm

Shipping Weight

5.30kg

Compliance

FCC, CE

Environmental

RoHS, REACH, WEEE
