HDBT TRANSMITTER
Your price shows when you log in
Log in to see the price and order
First time? Log in with a code sent to your email
Quick facts
- Supports
- Supports HDBaseT transmitter operation
- Includes
- Includes HDMI input and control connectivity
- Features
- Supports long-distance 4K AV extension
- Outputs
- HDBT OUT
- HDMI version
- HDMI2.0b & HDCP2.2

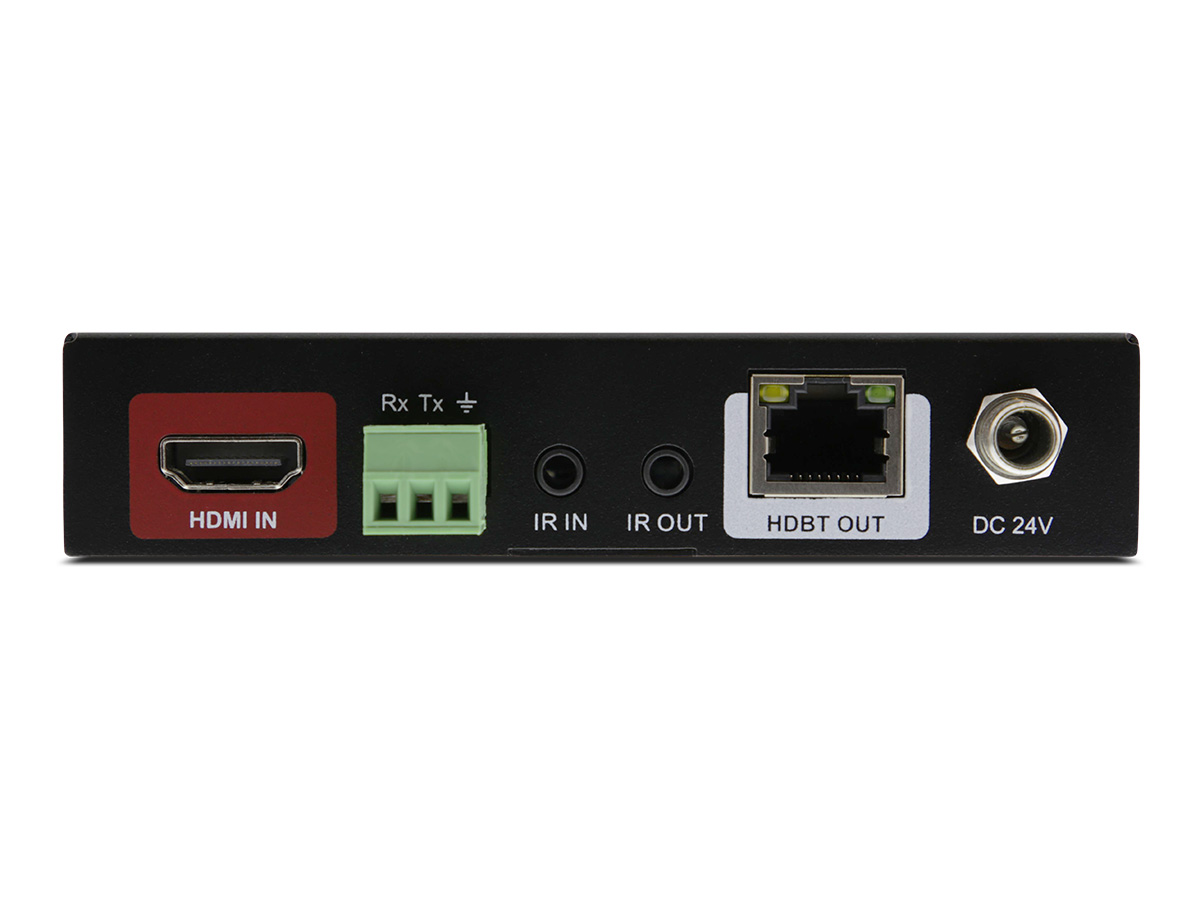

COMPACT 18G HDMI 2.0 OVER HDBT TRANSMITTER
The EXT-H101L2-TX-HDBT is a fully 18G HDMI 2.0b compliant HDBaseT transmitter. It extends HDMI audio, video as well as control up to 70m using a single Category 6A solid core cable (4K 60Hz 40m / 1080P 60Hz 70m) to a compatible HDBaseT receiver. Supports HDMI 2.0b, HDR and HDCP 2.2.
The EXT-H101L2-TX-HDBT provide crystal clear HDR and full bandwidth 4K video in a compact formfactor. Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver end.
Features
- Compact formfactor
- Supports HDMI 2.0b, 4K@60 4:4:4, HDR, HDCP 2.2.
- 4K HDMI signal extension up to 40m, and 1080p is 70m.
- Supports CEC, IR, and RS232 pass-through.
- Supports bi-directional 24V PoC for simplified installations.
