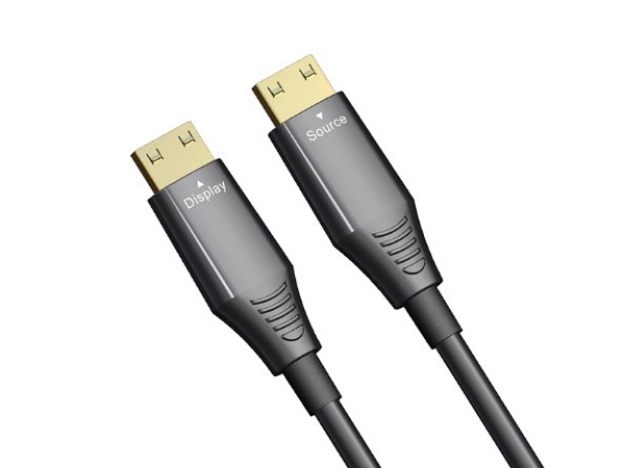

PRO HDMI ACTIVE FIBER CABLE, 60M

Model name: HDMI-M/M-AOC-60

ACTIVE OPTICAL FIBER CABLE, 48 GBPS HDMI, 60 Meters

K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps. Powered by the HDMI source device. No external power supply needed. Available in 15m, 30m and 60m lengths.

> 4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps.

> Proprietary Low Power High Bandwidth Chipset.

> EMI (electromagnetic interference) protection.

> Powered by the HDMI source device. No external power supply needed.

> Connector locking mechanism for secure installation.

> Durable and strong.

> Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM)

> Quick Frame Transport (QFT).

> Supports Dynamic HDR and eARC.

Specifications
Product Files

Models	HDMI-M/M-AOC-15 HDMI-M/M-AOC-30HDMI-M/M-AOC-60
Protocol specification	HDMI 2.1 & HDMI 2.0 & HDMI 1.4
Video resolution	Up to 8K@60Hz 4:4:4
Transmission speed	48Gbps(12Gbps per channel)
Connector
Source	HDMI Type A Male (Gold plating)
Display	HDMI Type A Male (Gold plating)
Cable
Cable specifications	1C+(2c30#+DA)+3C28#+2C*24#+F+AL+B
Optical fiber specifications	4*Multi-mode optical fiber
Available lengths	HDMI-M/M-AOC-15: 15 meters HDMI-M/M-AOC-30: 30 meters HDMI-M/M-AOC-60: 60 meters
Outer sheath material	PVC
Outer sheath color	Black
Outer diameter	5.2mm±0.1mm
Cable bending radius	6mm
Connector max pulling strength	150N (15kg,33lbs)
Cable max pulling strength	500N (50kg,110lbs)
Environment
Operating temperature	-20℃ to +70℃
Storage temperature	-40℃ to +80℃
Power
Input voltage	+5V
Energy consumption	≤500mW
Attention
Please avoid excessive bending of the optical fiber during use. Refer to "bending" radius for details.
