TiGHT AV AU-X2I | Dante-adapter, 2 x XLR In (HW1)

Sorry - this product is no longer available

Model name: -AU-X2I-DA
PLUG-AND-PLAY PoE DANTE INTERFACE

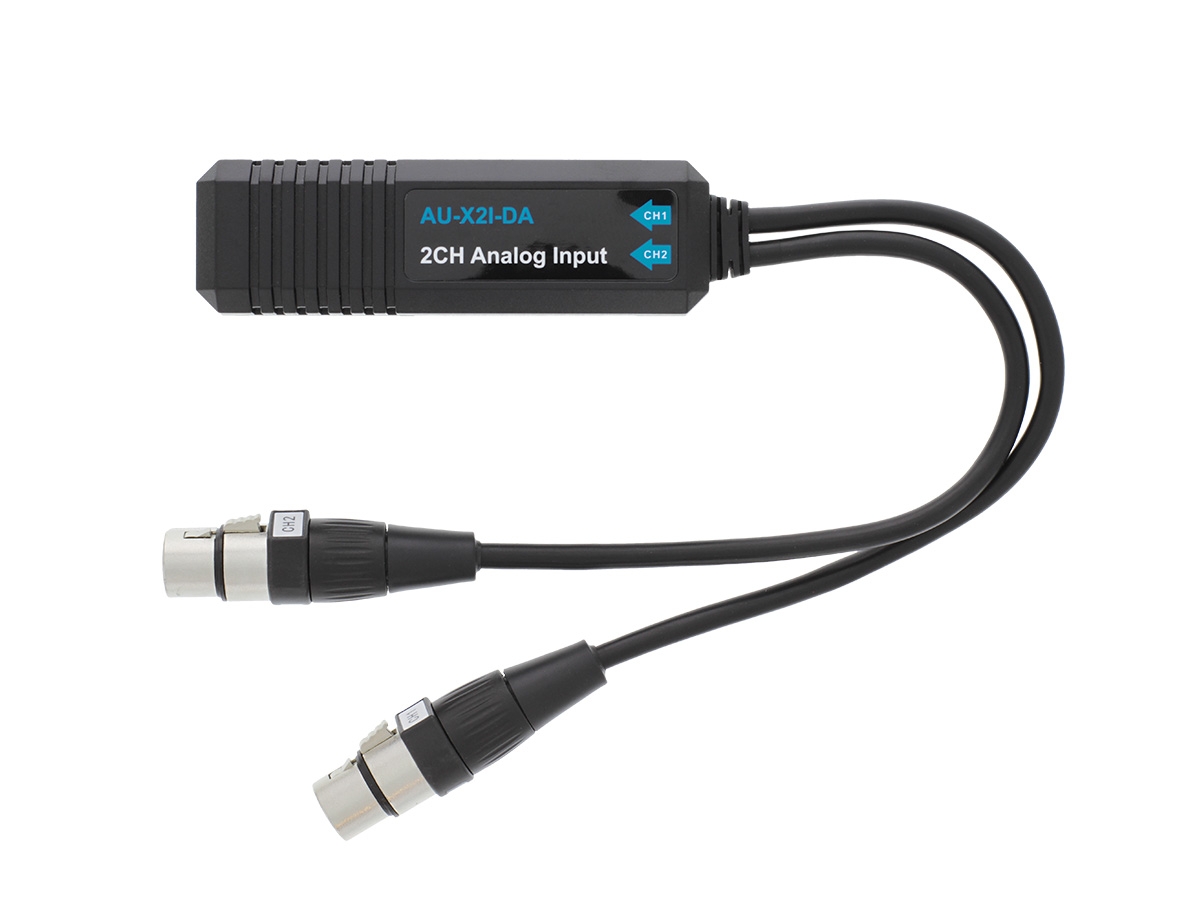

AU-X2I-DA from TiGHT AV inputs two channels of analog line level audio to your Dante network. It supports sample rates up to 96kHz, using Audinate’s original Dante Ultimo chip.



Featuring two female XLR standard connectors, the AU-X2I-DA is a simple and cost-efficient solution to connect analog equipment to a Dante network.



PoE support allows for a simplified installation via a PoE-capable network switch or from a separate PoE injector.



KEY FEATURES:



-Plug and Play
-2 x line inputs on standard XLR female connectors
-Dante and AES67 support
-24-bit audio support
-Supports 802.3af PoE
-Dante Controller and Dante Domain Manager compatible

AUDIO:

Max signal level

+24 dBu / +4 dBu / 0 dBu

0 dBV /-10 dBV

Frequency Response

20 Hz to 20 kHz (-/+0.5dB)

Impedance

20k Ohm balanced

10k Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4 dBu



DANTE:

Sample Rate

44.1 kHz, 48 kHz, 96 kHz

Bit Depth

24

Dante Device Latency

1, 2 or 5 ms (configurable using Dante Controller)

Network Transport

Dante Audio over IP

AES67 RTP

Model Name

AU-X2I-DA



GENERAL:

Connectors

2 XLR-F

Operation Temperature

-5 to +55 (+23° to +131°F)

Storage Temperature

-25 to +70℃

(-13° to +158°F)

Power

802.3af PoE

Power Consumption

3.15W (Max)

Dimension (W*H*D)

30 x 28 x 114 mm

Cable length

300mm

Net Weight

145g

Compliance

FCC, CE

Environmental

RoHs, WEEE
